DN |
Nom. Pipe Size |

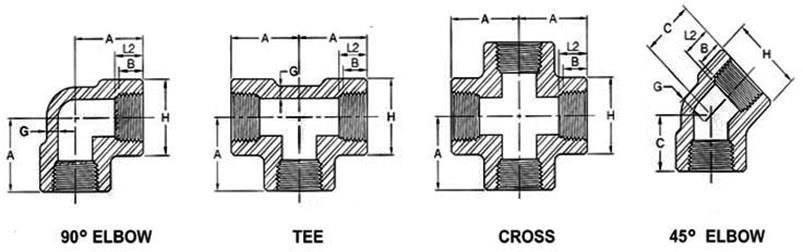

Center to End Elbow, Tee, Cross A |
Center to End 45° Elbow |
Outside Diameter Of Band |
Minimum Wall Thickness |
Length of Thread Min. (1) |
|||||||||
|
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
B |
L2 |
||
|
6 |
1/8” |
21 |
21 |
25 |
17 |
17 |
19 |
22 |
22 |
25 |
3.18 |
3.18 |
6.35 |
6.4 |
6.7 |
|
8 |
1/4” |
21 |
25 |
28 |
17 |
19 |
22 |
22 |
25 |
33 |
3.18 |
3.30 |
6.60 |
8.1 |
10.2 |
|
10 |
3/8” |
25 |
28 |
33 |
19 |
22 |
25 |
25 |
33 |
38 |
3.18 |
3.51 |
6.98 |
9.1 |
10.4 |
|
15 |
1/2” |
28 |
33 |
38 |
22 |
25 |
28 |
33 |
38 |
46 |
3.18 |
4.09 |
8.15 |
10.9 |
13.6 |
|
20 |
3/4” |
33 |
38 |
44 |
25 |
28 |
33 |
38 |
46 |
56 |
3.18 |
4.32 |
8.53 |
12.7 |
13.9 |
|
25 |
1” |
38 |
44 |
51 |
28 |
33 |
35 |
46 |
56 |
62 |
3.68 |
4.98 |
9.93 |
14.7 |
17.3 |
|
32 |
1-1/4” |
44 |
51 |
60 |
33 |
35 |
43 |
56 |
62 |
75 |
3.89 |
5.28 |
10.59 |
17.0 |
18.0 |
|
40 |
1-1/2” |
51 |
60 |
64 |
35 |
43 |
44 |
62 |
75 |
84 |
4.01 |
5.56 |
11.07 |
17.8 |
18.4 |
|
50 |
2” |
60 |
64 |
83 |
43 |
44 |
52 |
75 |
84 |
102 |
4.27 |
7.14 |
12.09 |
19.0 |
19.2 |
|
65 |
2-1/2” |
76 |
83 |
95 |
52 |
52 |
64 |
92 |
102 |
121 |
5.61 |
7.65 |
15.29 |
23.6 |
28.9 |
|
80 |
3” |
86 |
95 |
106 |
64 |
64 |
79 |
109 |
121 |
146 |
5.99 |
8.84 |
16.64 |
25.9 |
30.5 |
|
100 |
4” |
106 |
114 |
114 |
79 |
79 |
79 |
146 |
152 |
152 |
6.55 |
11.18 |
18.67 |
27.7 |
33.0 |
